Foam Jet – NIF

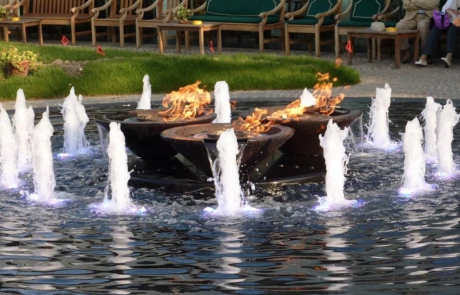

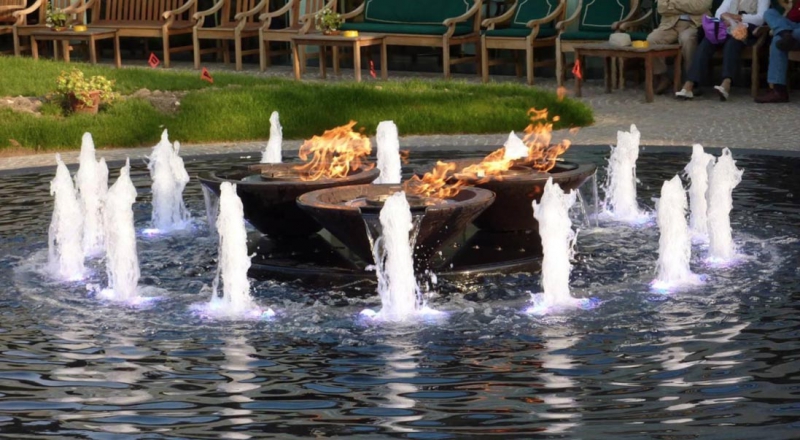

A column of frothy, white, aerated water that is beautiful when illuminated. This effect is recommended for small and medium sized displays in shallow pools.

Function
A column of frothy, white, aerated water. Recommended for small and medium-sized displays in shallow pools. Beautiful when Illuminated. Low profile of jets permits installation in shallow pools with a neat appearance.

Specification

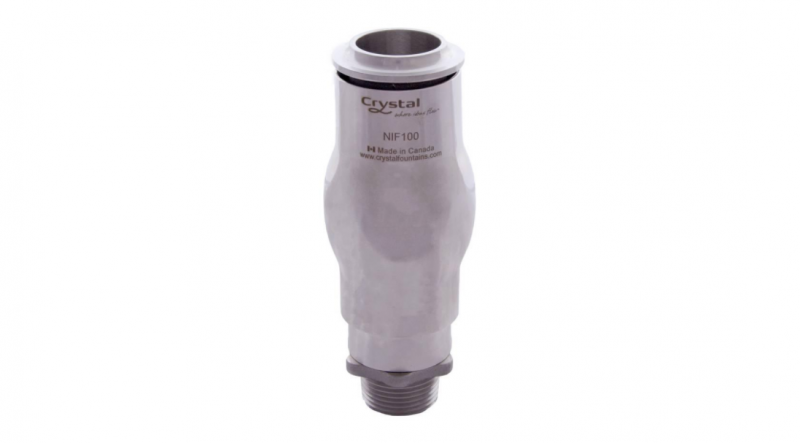

Construction of nozzle shall be Stainless Steel.
Part no. NIF 100 – Inlet 1″ NPT
Part no. NIF100B – Inlet 1″ BSP

Orifice: 1.375″/35mm
Minimum suction strainer openings
required: 0.125″/3mm

Option

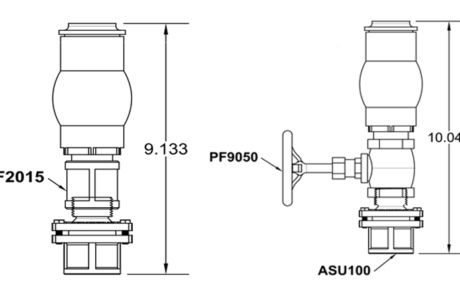

  1. Swivel connection allow 15º adjustment of nozzle after installation and 1″ brass coupling.
  2. Swivel connection allow 15º adjustment of nozzle after installation and 1″ gate valve.
  3. NIF120-Bronze Jet

If you have questions on this product please call 631-467-5115.

Specifications:

  • Low profile permits installation in shallow pools with a streamlined appearance
  • Easy to install with 15 degree adjustment after installation
  • Made of stainless steel and plastic
  • Not water level dependent
Foam Jet NIF Cutsheet
