Mini-Spout Jet

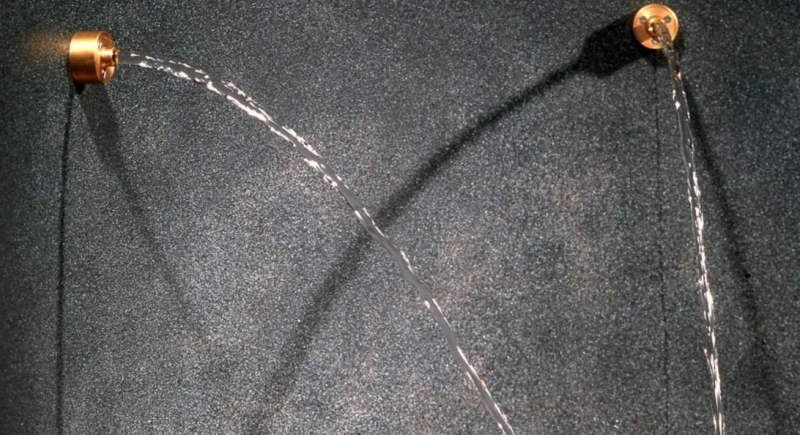

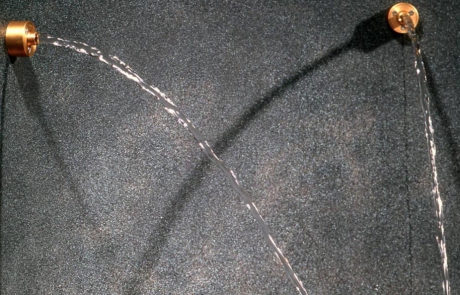

A clear stream jet that falls gracefully into pools from a small wall spout. Used for either flush or wall-mounted surface applications.

Function

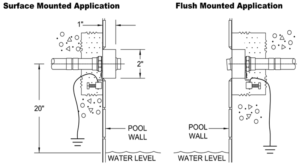

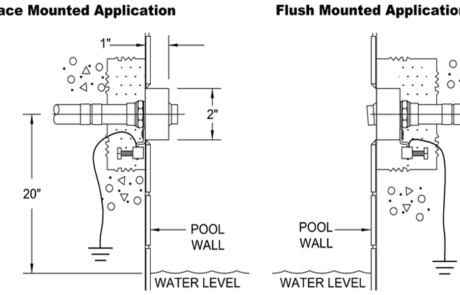

A clear stream jet that falls gracefully Into pools. Used for wall mounted applications either flush or surface mounted. Integral swivel permits directional adjustments to  the stream. For use primarily in small architectural pool.
Not water level dependent.

Specification

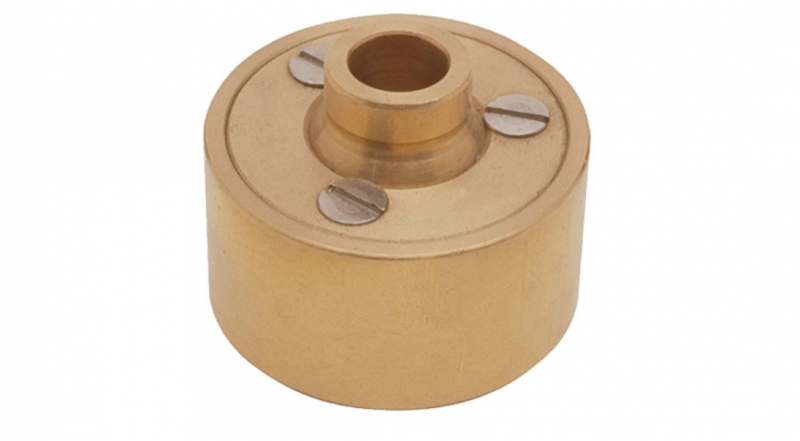

Construction shall be from extruded brass with stainless steel fasteners.

Options
NMS050-K – Comes with surface flange
NMS050-L – Comes with membrane clamp

Notes

  1. Requires fine screening at pump for optimum effect (suction strainer opening 0.0250″)
  2. For interactive play do not exceed 20 feet per second = 12.2 US gpm

If you have questions on this product please call 631-467-5115.

Specifications:

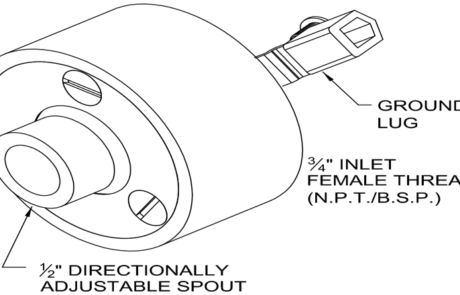

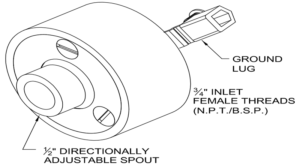

  • Integral swivel permits directional adjustments to the stream
  • For use primarily in small architectural pools
  • Made of extruded brass
  • Not water level dependent
Mini-Spout Jet Cutsheet
