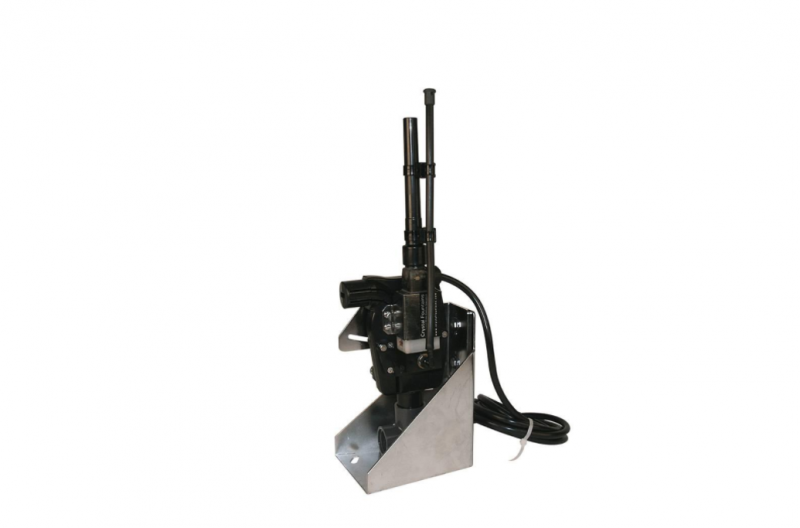

Sequencing Plume Nozzle

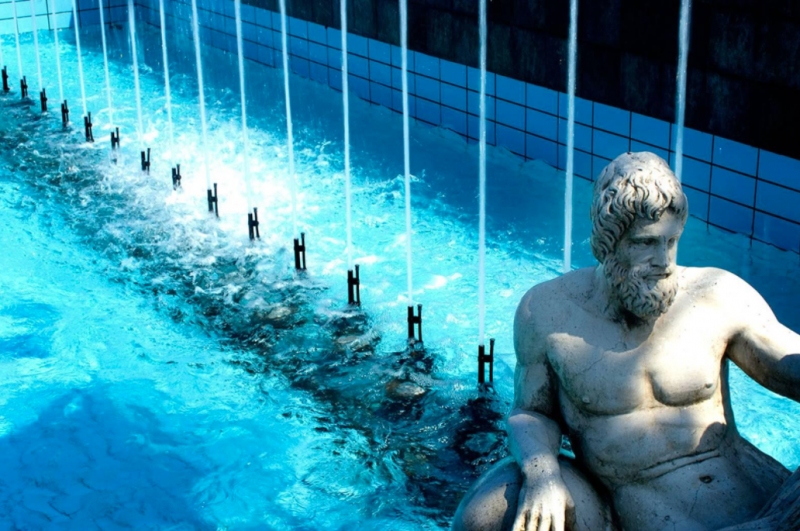

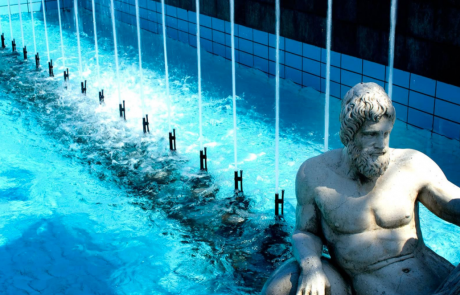

The Crystal ChoreoSwitch is an exciting sequencing unit meant for fountains with no public access. Available in plume, aerator, or finger jet variations, the ChoreoSwitch allows for the creation of advanced fountain shows due to its high sequencing speed. This particular jet is an aerator, and can activate up to 10 times per second while producing a powerful foamy effect with no water hammer. Multiple ChoreoSwitches can be grouped together to produce a wide array of geometric patterns and the heights can be controlled through the use of a variable speed drive pump.

Function
The Crystal Fountains ChoreoSwitch® is a water level independent sequencing nozzle assembly that produces programmed effects at high switching speeds, up to 10 times per second, when receiving a signal from produce a wide variety of geometric patterns. Varying heights can be produced using a variable frequency drive (VFD) pump. The ChoreoSwitch® is a low maintenance device that produces no water hammer. The plastic plume nozzle creates an elongated column of water impressive vertical skills

Specifications

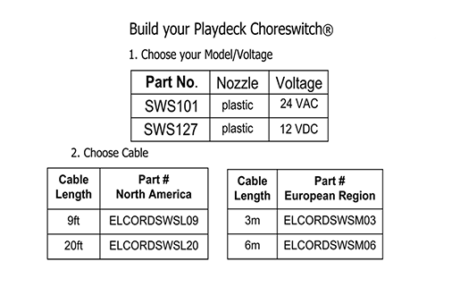

Construction shall be plastic and stainless steel complete with:

  1. 12VDC (SWS127) or 24VAC (SWS101) signal and common for sequencing device, 5 Watt DC or 8 Watt AC non-polarized coil. Inrush current 20VA, holding current 11VA.
  2. Solenoid equipped with power current verifying LED indicator.
  3. Solenoid assembly shall be serviceable
  4. Patented Front access door for slide-out easy-clean debris screen.
  5. Patented media isolation valve to protect the solenoid from corrosion

Options
Quick connect kit: Part No. SWS100A600, includes 1″ brass gate valve, quick-disconnect cam-lock.

Notes

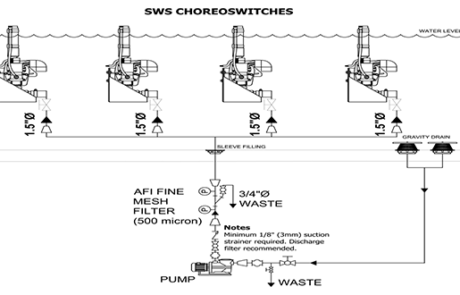

  1. Minimum 1/8″ (3mm) suction strainer required. Discharge filter 500 micron recommended.
  2. Connect submersible cable to Crystal Fountains’ EBJ series junction box with EGS051 cord seal.

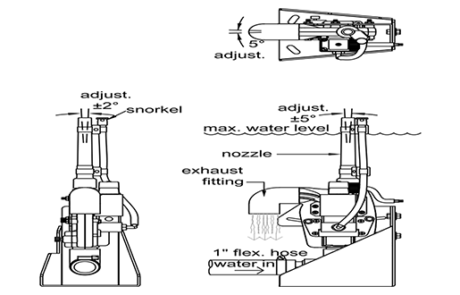

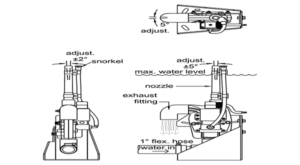

  3. Air snorkel (see front view) must be kept at a minimum of 1″ (25mm) above water level to ensure desired water effect.
  4. May be installed out of water or submerged to maximum water level shown (see Performance chart).
  5. Fuse all outputs to switches in panel box.
  6. 24VAC ChoreoSwitch® must have GFCI protection.
  7. For interactive play. DO NOT exceed 20ft/sec. (6m/s) or 11.95 GPM (45 LPM).
  8. Exhaust fitting included (shipped loose): 1″ Tee and 1″ elbow of PVC sch.40. Use elbow for exposed-exhaust application and use Tee for submerged application to minimize rocking thrust.
  9. Pivot point for the stainless steel stand centered at top of nozzle for maximum angle adjustment while minimizing nozzle movement.
  10. Contact Crystal Fountains for  detailed specification, installation and operation details.

Function of Choreoswitch

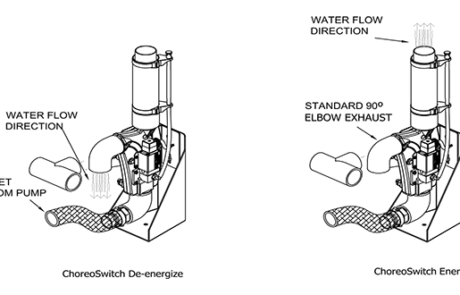

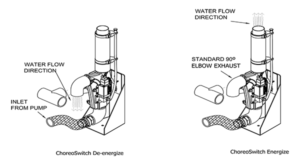

The Crystal Fountains ChoreoSwitch® is a switch capable of directing water on and off to nozzles without any water hammer associated with normal valves that shut the water off which causes destructive water hammer, the Crystal Fountains ChoreoSwitch® never actually shuts the water off. When the fountain controller closes the water discharge port the water is diverted to the water by-pass ports. the diverted water exits the unit via the water bypass port elbows, which then flows back to the reservoir using a 12VDC or 24VDC signals from a control.

All of the products on this page are made of the highest quality materials.

Specifications:

  • 1″
  • Made of polycarbonate ABS with UV protection and 304/316 stainless steel
  • Brass nozzle
  • 24VAC
  • Operates under 50/60 Hz AC signal for global applications
  • Can be installed out of water or submerged
  • Can be adjusted up to 5° for easy installation alignment
  • Know when your unit is working – the ChoreoSwitch comes with a power current verifying LED light
  • Unique to the ChoreoSwitch, a service door compartment allows easy debris clean-out for maintenance
  • Optional Quick Connection Kit available
  • Patented media isolation valve to protect the solenoid from corrosion.
  • Not water level dependent
Sequencing Plume Nozzle Cutsheet
