Nozzle – Column Jet2021-05-02T02:23:50+00:00

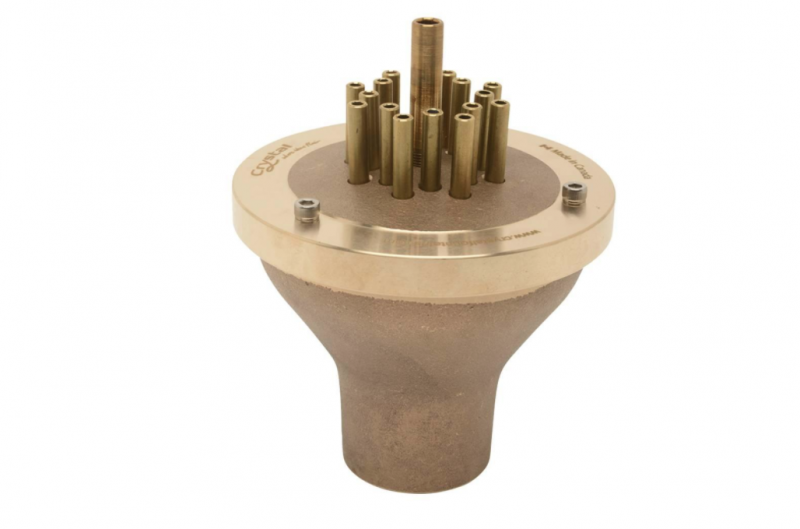

Column Jet

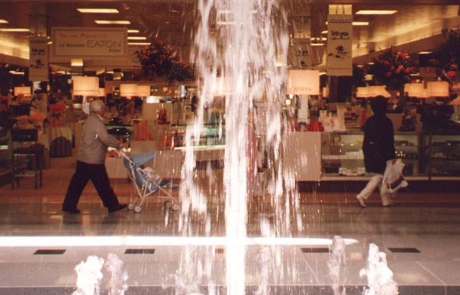

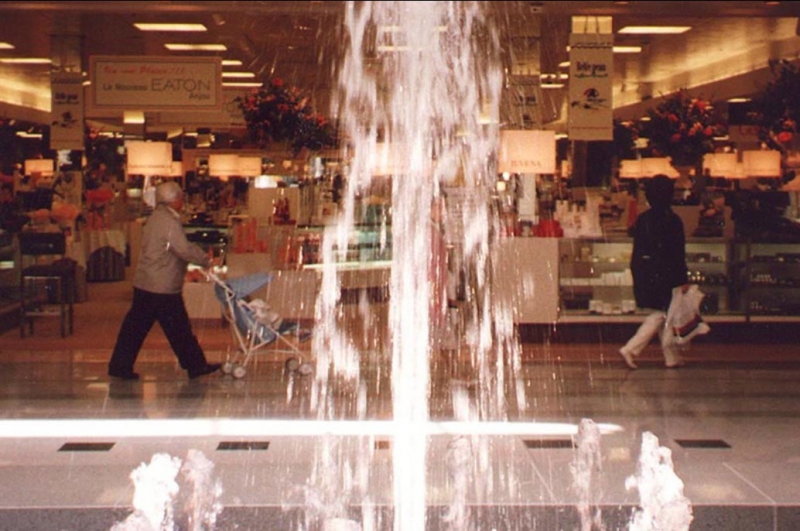

A simple vertical column of clear water, ideal as a focal point for small and medium-sized displays, or as a peripheral effect for large displays. Composed of an array of small openings, a delicate upward stream effect is created. This product is not water level dependent.

Function

A simple vertical column of clear water. Ideal as a focal point for small and medium-sized displays. Also appropriate as a peripheral effect for large displays.
Not water level dependent.

Specification
Construction shall be machined bronze and brass. Lid shall be removable for easy cleaning.
Comes standard with N.P.T. threads, B.S.P.T. available upon request.
NLC075 comes complete with copper ground connector for flush mounting in concrete.

Options

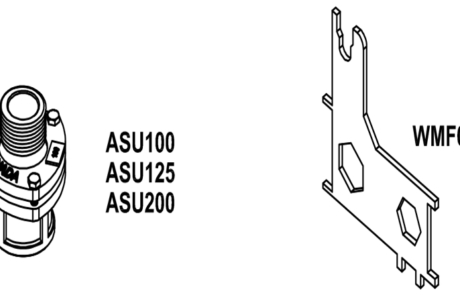

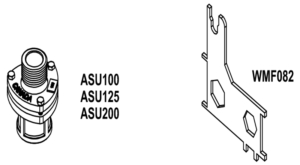

ASU Series – 15º swivel connection for direction alignment of nozzle
WMF – Cover removal key for NLC075

Specifications:

  • Machined bronze and brass
  • Removable lid for easy cleaning
  • Standard N.P.T threads, B.S.P.T available upon request
  • NLC075 comes complete with copper ground connector for flush mounting in concrete

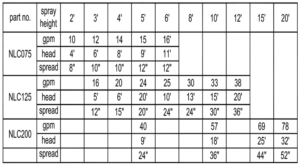

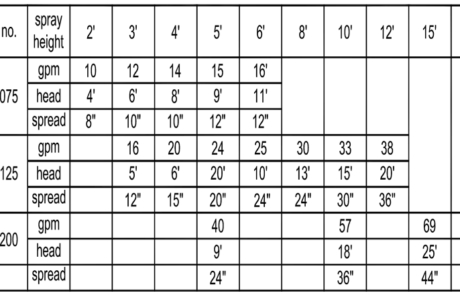

Column Jet Cutsheet
