Fountain Controls and Accessories

Drains and Fittings

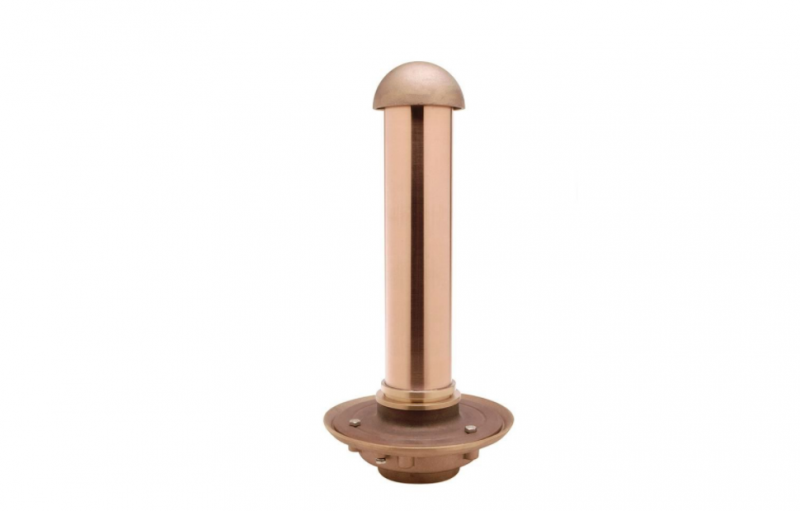

Overflow Drain – DOA

Function

The DOA is a combination overflow and pool drain.

Specifications

  • Excess water overflows into standpipe
  • Slip connection to standpipe facilitates removal for draining
  • Available with optional debris screen, other standpipe sizes or underdeck clamps for low-tile applications
  • Made of cast bronze with copper standpipe and stainless-steel fasteners

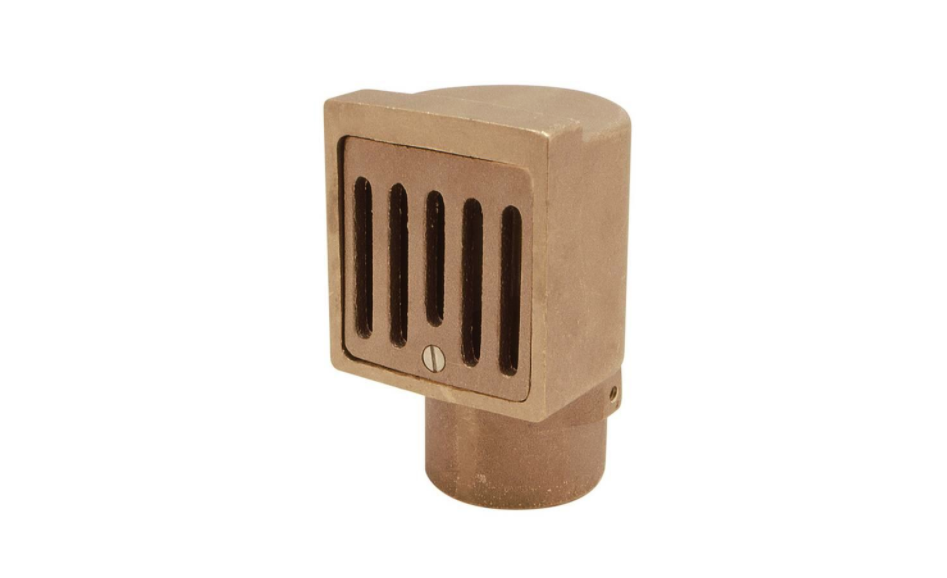

Overflow Drain – DOL

Function

This light duty, wall-mounted overflow drain regulates water level.

Specifications

  • Excess water spills over adjustable weir
  • Single screw adjusts overflow tube to desired level after installation
  • Available with optional surface flange or membrane clamp
  • Made of cast bronze

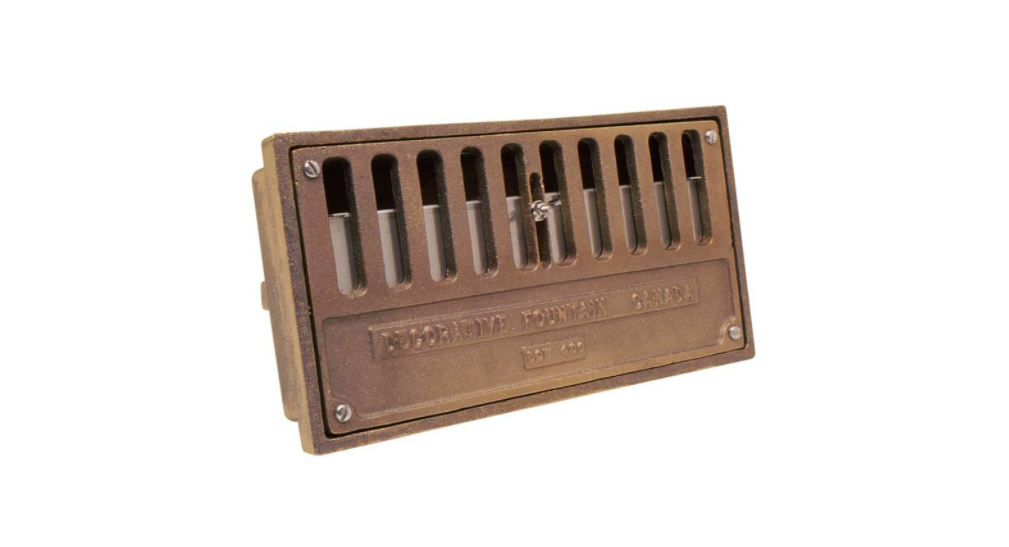

Overflow Drain – DOW

Function

Heavy-duty, wall-mounted overflow drain which regulates water level.

Specifications

  • Excess water spills over adjustable weir
  • Single screw adjusts weir plate to desired level after installation
  • Available with optional open grate, surface flange, membrane clamp, 90-degree solder elbow or winter cover
  • Made of cast bronze

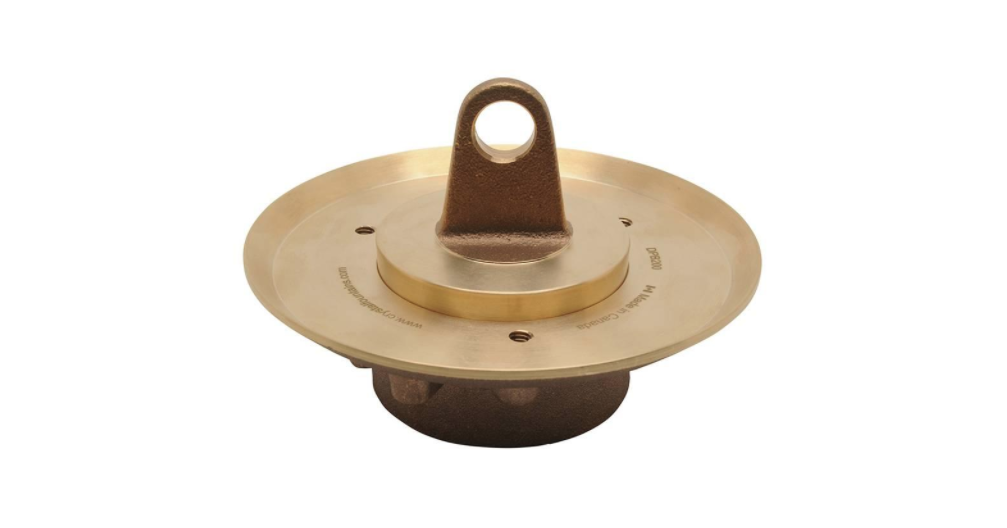

Outlet Drain

Function

This outlet is ideal for draining pools.

Specifications

  • Plug has slip connection for easy removal
  • Ideal for applications that do not require waterproofing membranes and clamp collars
  • Made of cast bronze

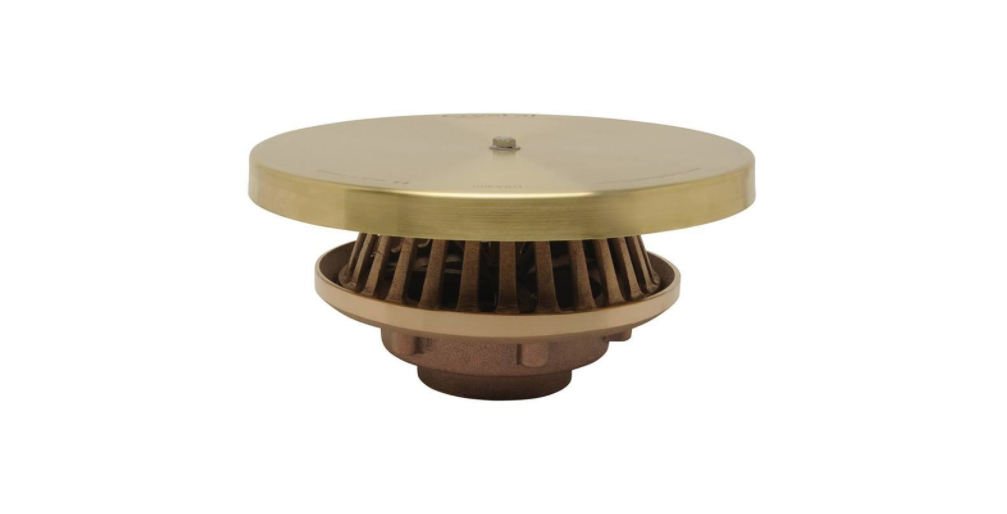

Suction Drain

Function

Pump suction for use in draining concrete pools.

Specifications

  • Low profile and inverted cone shaped “maxi-flow” strainer intercepts debris and anti-vortex plate prevents air entrapment
  • Available with optional adjustable flow regulator, cast bronze anti-vortex plate, debris screen, flat grate, membrane clamp, fiberglass square anti-vortex plate or fiberglass square anti-vortex plate recessed for tiles
  • Made of cast bronze with textured anti-vortex plate and stainless-steel fasteners

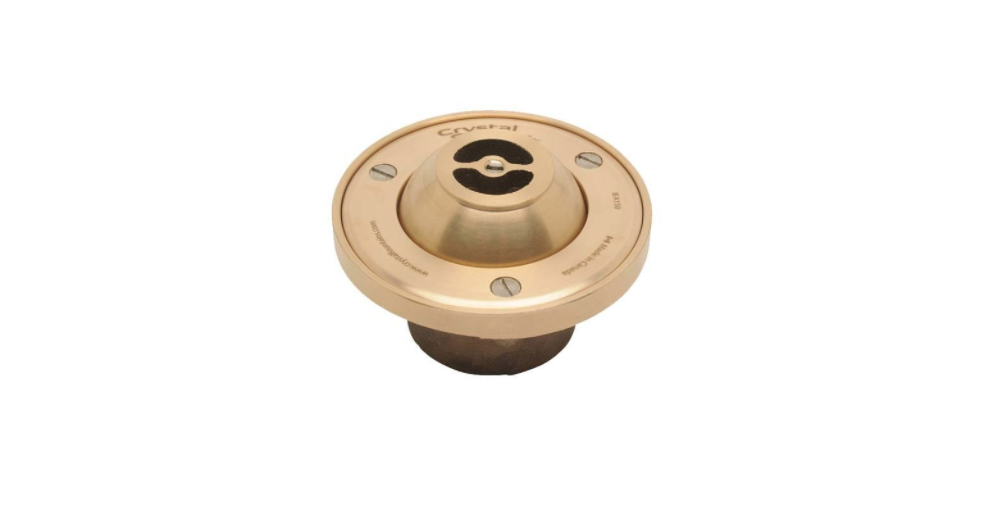

Inlet Fitting – IEA

Function

Precision-engineered for heavy-duty fountain water recirculation.

Specifications

  • Adjustable eyeball filter return for pool recirculation
  • External adjustment makes flow regulation and balancing easy
  • Available with optional surface flange, membrane clamp or winter cover
  • Made of cast bronze with stainless steel fasteners

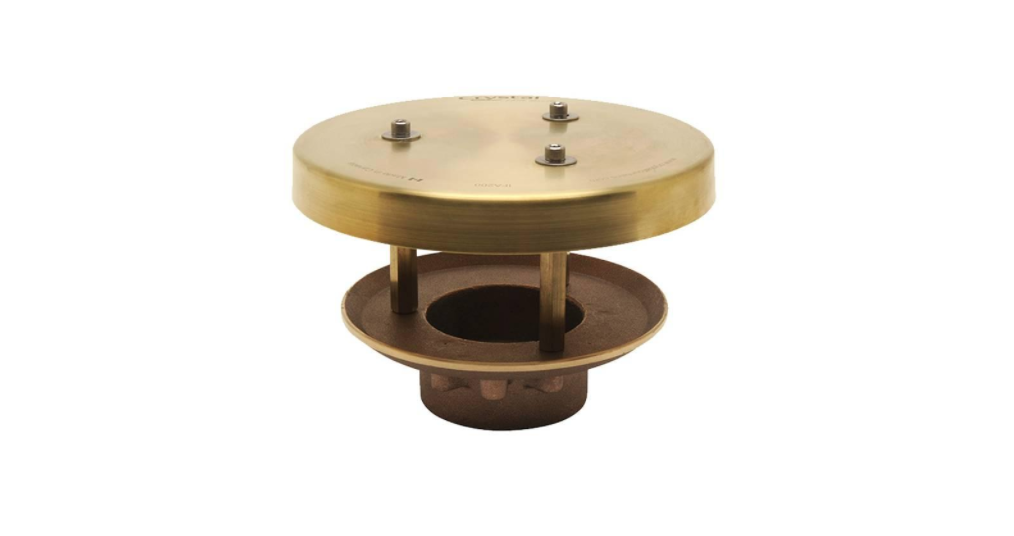

Inlet Fitting – IFA

Function

Precision-engineered for heavy-duty fountain water recirculation.

Specifications

  • Adjustable eyeball filter return for pool recirculation
  • External adjustment makes flow regulation and balancing easy
  • Available with optional surface flange, membrane clamp or winter cover
  • Made of cast bronze with stainless steel fasteners

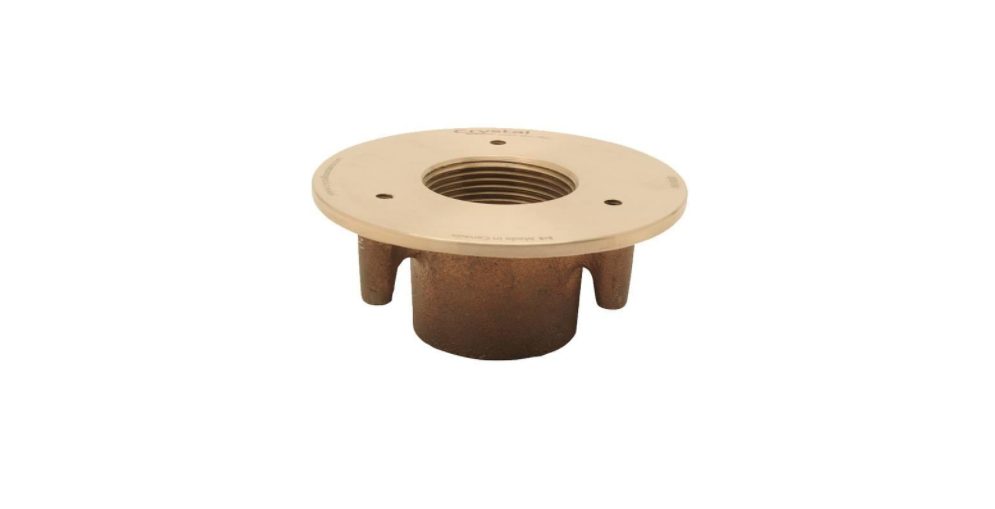

Threaded Sleeve Fitting

Function

Threaded sleeve fitting facilitates watertight penetrations through concrete slabs for supply and drain lines.

Specifications

  • Available with optional membrane clamp or underdeck clamp
  • Made of cast bronze with stainless steel fasteners

Fountain Accessories

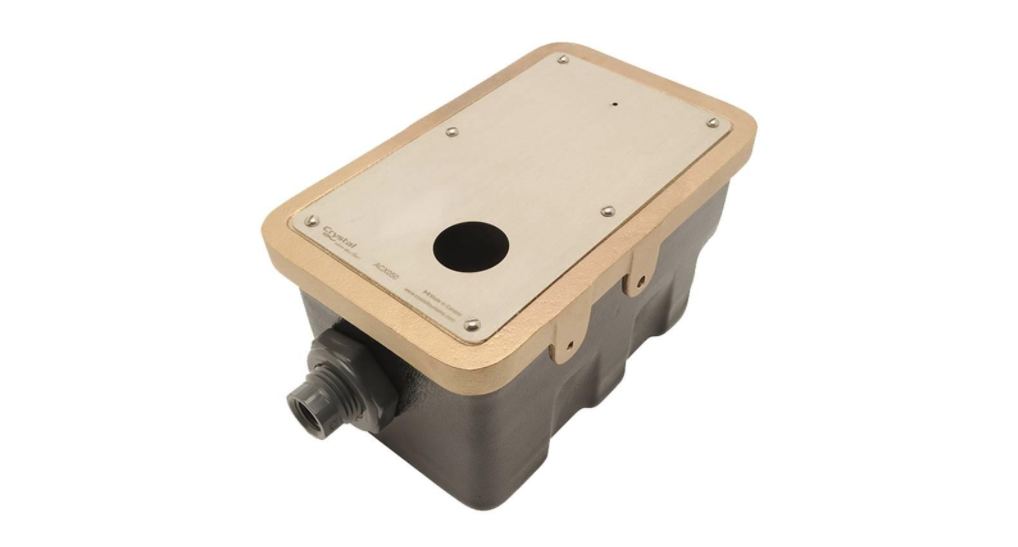

Light Duty Hydraulic Water Level Control

Function

Flush, wall-mounted, non-electric hydraulic water level control with built-in level adjustment automatically fills smart fountains.

Specifications

  • Available with optional brass cover plate or vandal resistant kit
  • Made of cast bronze frame with stainless steel cover

Light Duty Hydraulic Water Level Control

Function

Flush, wall-mounted, non-electric hydraulic water level control with built-in level adjustment automatically fills smart fountains.

Specifications

  • Available with optional brass cover plate or vandal resistant kit
  • Made of cast bronze frame with stainless steel cover

Light Duty Hydraulic Water Level Control

Function

Flush, wall-mounted, non-electric hydraulic water level control with built-in level adjustment automatically fills smart fountains.

Specifications

  • Available with optional brass cover plate or vandal resistant kit
  • Made of cast bronze frame with stainless steel cover

Light Duty Hydraulic Water Level Control

Function

Flush, wall-mounted, non-electric hydraulic water level control with built-in level adjustment automatically fills smart fountains.

Specifications

  • Available with optional brass cover plate or vandal resistant kit
  • Made of cast bronze frame with stainless steel cover

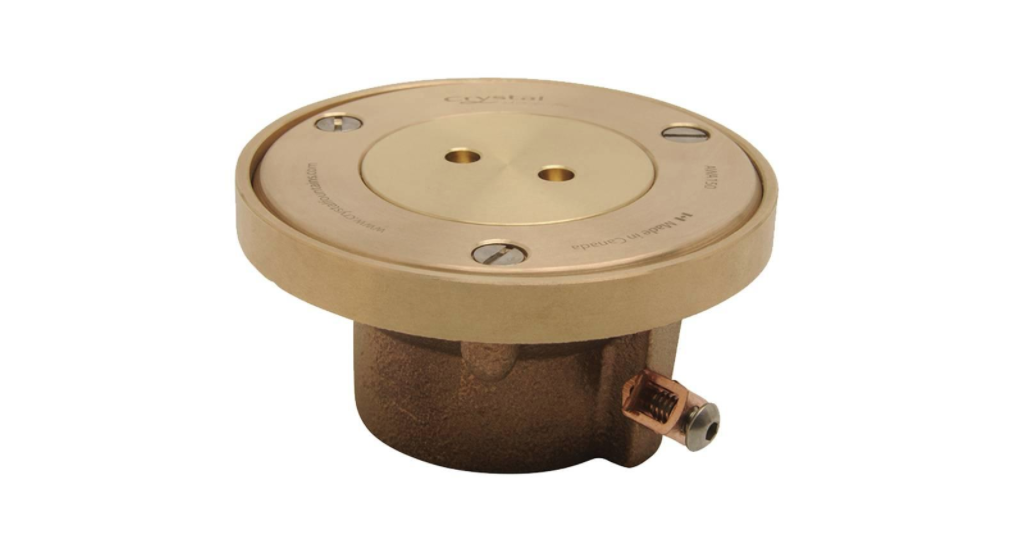

Vacuum Fitting

Function

AWA Series Vacuum Fitting is precision-engineered for heavy-duty fountain use.

Specifications

  • Supplied with vandal resistant vacuum plug
  • Available with optional security key/cover removal or membrane clamp
  • Made of cast bronze with stainless steel fasteners

Water Level Control

Water level controls maintain water levels in your fountain. They help prevent water loss due to evaporation, blowoff, or leaks. They also keep water level-dependent nozzles functioning properly. Both mechanical and electric models are available.

Water Level Control Panel

Function

The ECL water level control panel is used in conjunction with the AVQ Solenoid Fill Valve and water level sensors to monitor water levels in a fountain. It is capable of monitoring up to three water level operations depending on version selected and operates on 120 or 220 Volts. Panel interior NEMA 12 construction with optional weatherproof enclosure.

Specifications

  • Fills or replenishes pool water loss due to evaporation or splash
  • Shuts off in-pool electrical
  • Regulates start up and shut down water volumes on waterfall applications
  • More precision of high and low water volumes

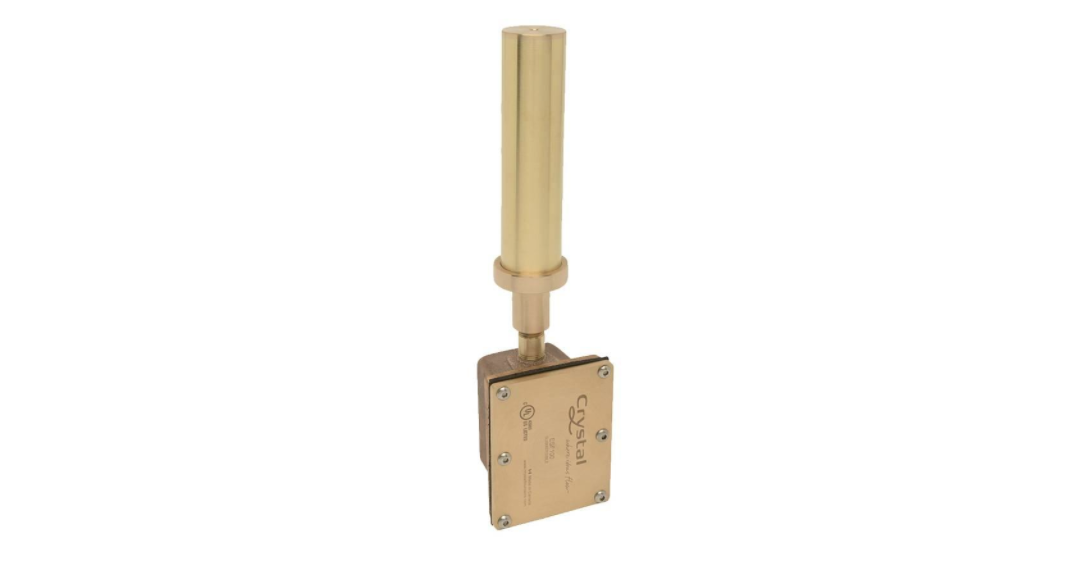

Conduit Mounted Level Sensor

Function

Conduit-mounted electronic water level sensor which automatically monitors quick-fill and safe-off functions.

Specifications

  • 24VAC/VDC 0.28 amp
  • Low voltage for safety
  • Connects to ECl control panel
  • Available in three versions with 1-3 sensors for quick-fill, safe-off or maxi-level control
  • Also available with custom sensor heights to meet any water depth application
  • Made of cast bronze and brass

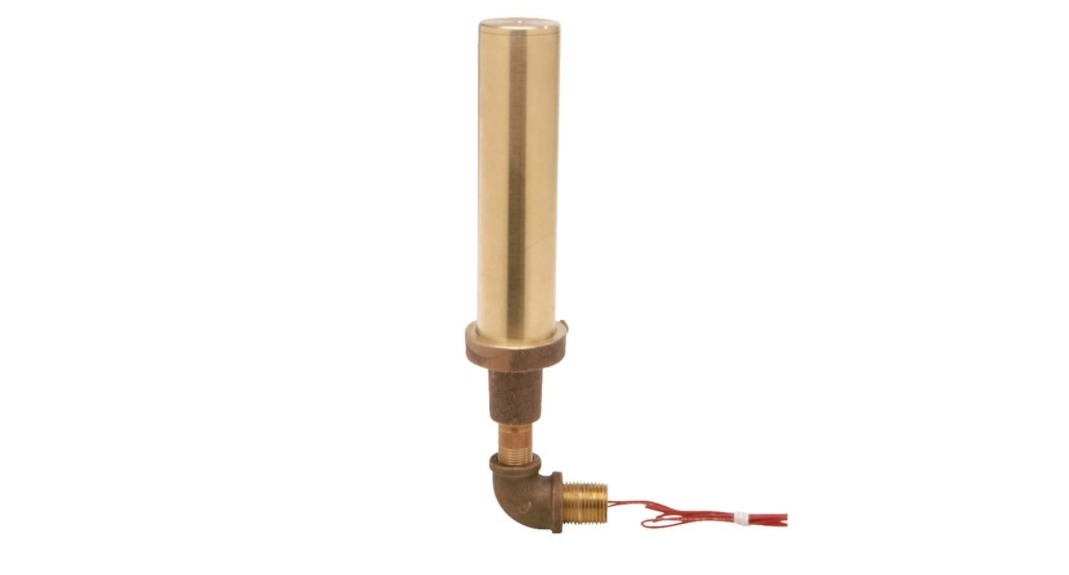

Adaptable Level Sensor

Function

The ESL series water level sensor is adaptable to most junction boxes for varied applications and good for fountain renovation.

Specifications

  • Made of cast bronze and brass with neoprene molded seal
  • Sensor is reed switch enclosed in polypropylene
  • Magnetically actuated float with 1″ level adjustment
  • 24VAC /DC, .28A

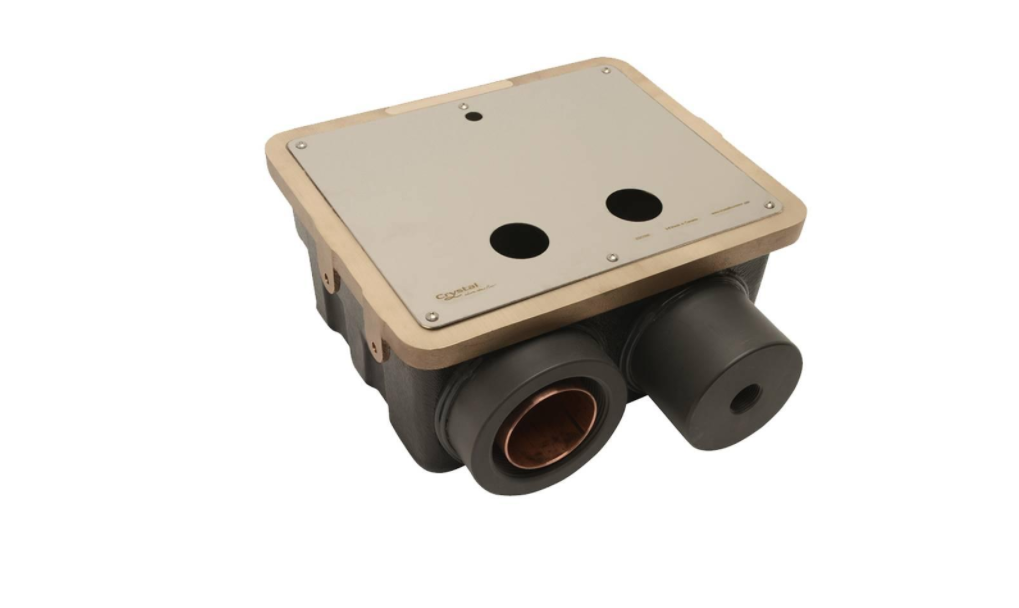

Electronic Level Control and Overflow

Function

Flush, wall mounted, combination electronic water level controller and overflow drain. Automatically monitors quick fill and safe-off functions, and drains over flow water through a built-in drain. Integral adjustments on level sensors and standpipe facilitate adjustments after installation. Low voltage for safety. Connects to Crystal Fountains’ ECL series control panel.

Specifications

  • Cast bronze frame with DEFO impact-resistant stainless-steel cover and molded plastic enclosure
  • Overflow drain assembly shall be brass, copper, and extruded plastic fitted
  • Level switch shall be reed relay enclosed in a plastic, magnetically actuated float with 1” level adjustment
  • Voltage 12 VAC 0.5Amp. Non-inductive
  • Electrical conduit connection: ¾” n.p.t/b.s.p.
  • Drain connection: 3” n.p.t/b.s.p.
  • Chromed frame
  • Vandal-resistant driver kit, includes 6 S/S fasteners.

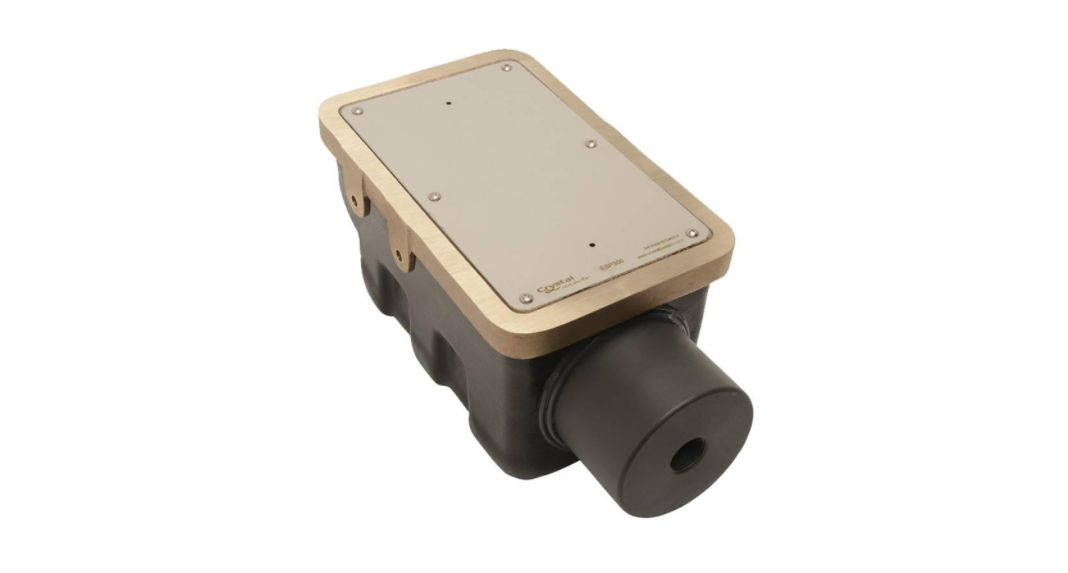

Wall-Mounted Level Sensor

Function

Flush, wall mounted, electronic water level sensor which automatically monitors quick-fill and safe-off functions.

Specifications

  • 23VAC/VDC 0.28 amp
  • Low voltage for safety
  • Connects to ECL control panel
  • Available in three versions with 1-3 sensors for quick-fill, safe-off or maxi-level control
  • Also available with brass cover plate
  • Made of cast bronze frame with stainless steel

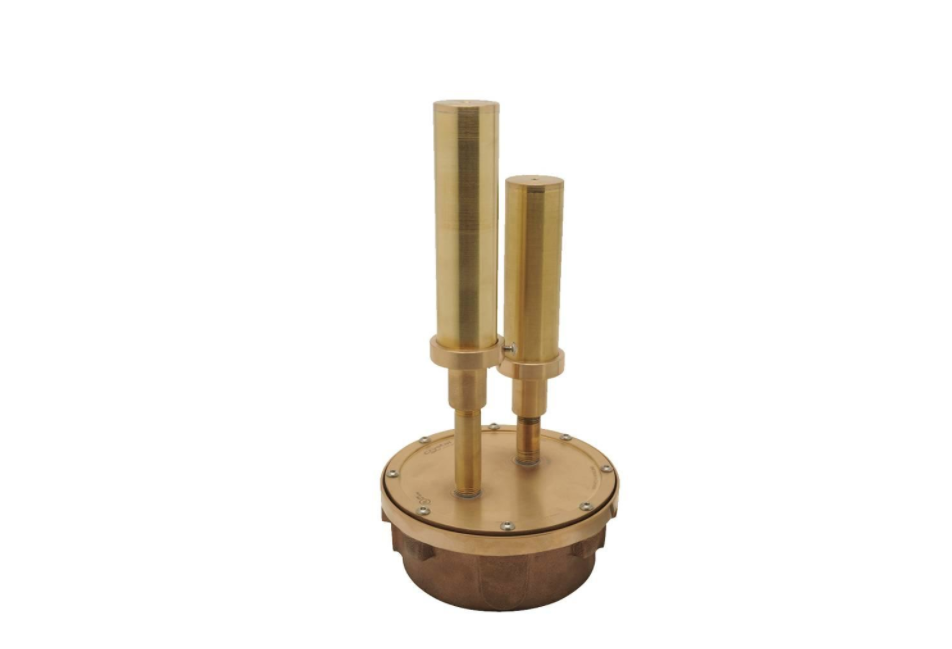

Moveable Level Sensor

Function

Movable electronic water level sensor automatically monitors quick fill and safe-off functions in very shallow water depths. Sensor is adjustable in height after installation. Low voltage for safety. Connects to Crystal Fountains’ ECL series control panel. Install vertically.

Specifications

  • Construction of sensor enclosure shall be cast bronze and brass with neoprene molded seal and gasket.
  • Sensor shall be reed switch enclosed in a polypropylene, magnetically actuated float with 1” level adjustment. Submersible cable shall be 9ft. 16/3, (ESS100), 18/4 (ESS200), or 16/5 (ESS300).
  • ESS100- 1 sensor, quick fill or safe-off.
  • ESS200- 2 sensors, quick fill and safe-off.
  • ESS300- 3 sensors, quick fill, safe-off and maxi-level control.
  • Voltage and current ratings: 24 VAC/DC, 0.28A
  • UL and ULC listed.
  • For use in Class 2 circuit only.
  • Wiring methods must comply with Class 3 or better circuits.
  • Custom sizes available upon request.
  • Connect to Crystal Fountains junction box (EBJ series).

Wall-Mounted Level Sensor

Function

Flush, wall mounted, electronic water level sensor automatically monitors quick fill and safe-off functions. May be mounted upside down for shallow applications. Standard with back connection. Low voltage for safety. Connects to Crystal Fountains’ ECL series control panel.

Specifications

  • Sensor box, junction box and covers shall be cast bronze with neoprene gasket and seals
  • Sensor reed switch enclosed in polypropylene, magnetically actuated float with 1” level adjustment
  • Voltage and current ratings: 24 VAC/DC, 0.28A

Wind Control

Wind control, Single or Double Stage Units, turns pump off when wind becomes too strong for fountain to operate at full capacity. Helps prevent water blowing onto sidewalks and other walkways.

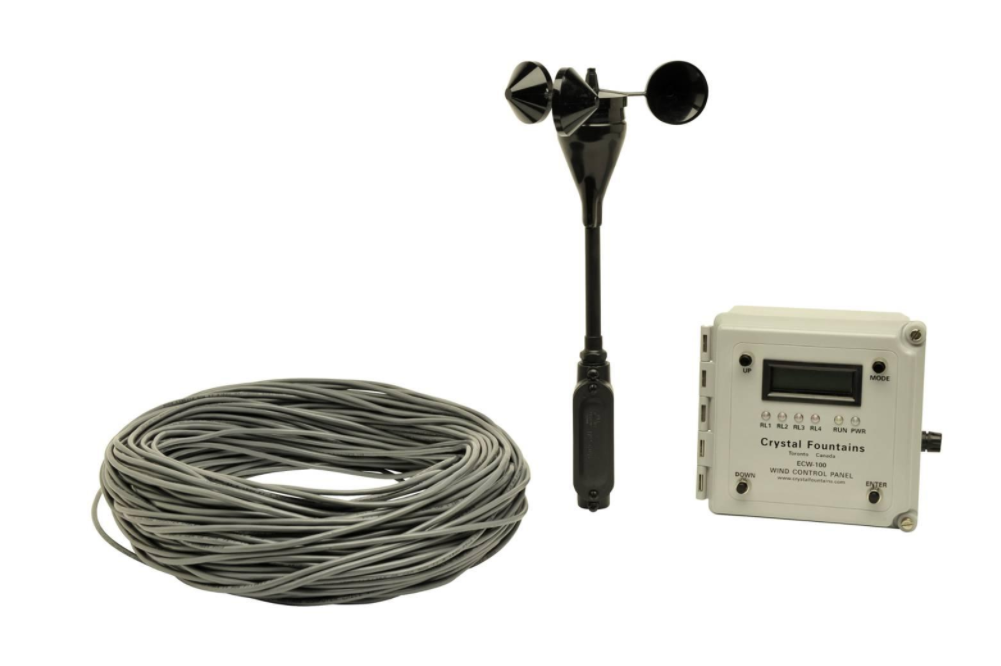

Wind Control Panel

Function

The ECW series wind control panel accurately senses wind velocity and adjusts the fountain control according to wind conditions.

Specifications

  • Panel includes an LCD display with adjustable wind-speed set points
  • Can monitor up to two wind zones at once using the dual sensor capability
  • Can control up to four relays and comes with memory backup
  • Available in 120V/220V
  • Control panel housing of plastic NEMA 4 rated
  • Wind sensor with plastic sensing head, rubber boot enclosure and copper and aluminum stem
  • Cable -300′ length

Electrical

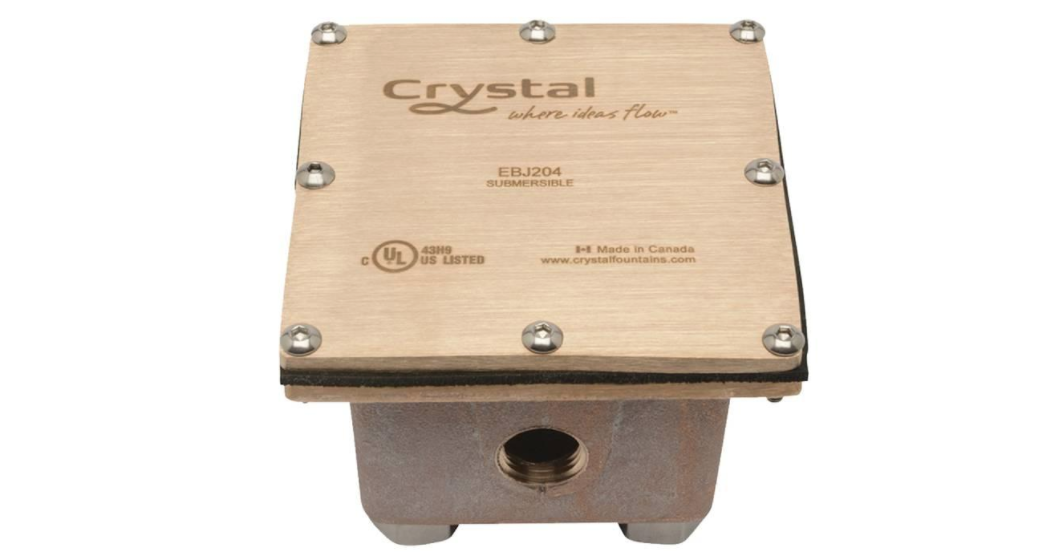

Underwater Junction Box – EBJ

Function

Submersible conduit-mounted junction boxes for underwater lights and pumps.

Specifications

  • Junction boxes come in various sizes and are best used with brass cord seals (EGS) and bass conduit stub ups (EPA)
  • Recommend to deal with junction box sealant (EBJC10 or EBJC20)
  • UL and ULC listed
  • Made of cast bronze
  • Custom hole patterns available

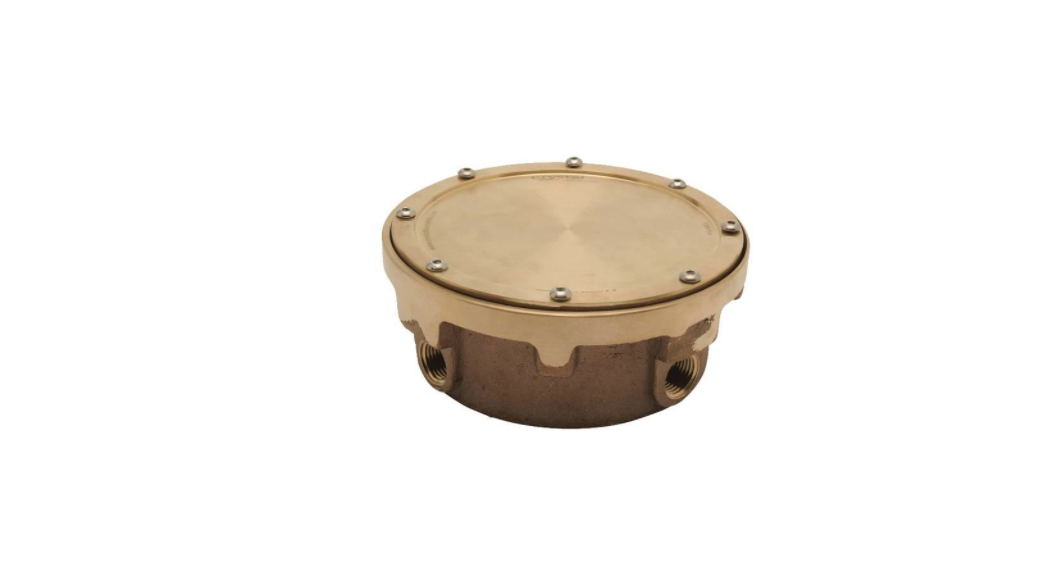

Underwater Junction Box – EBN

Function

Flush-mounted underwater electrical junction box for poured-in concrete applications.

Specifications

  • Can also be conduit-mounted
  • Best used with brass cord seals (EGN) and brass conduit stub ups (EPA)
  • Recommend to seal with junction boc sealant
  • UL and ULC listed
  • Made of cast bronze
  • Custom hole patterns available

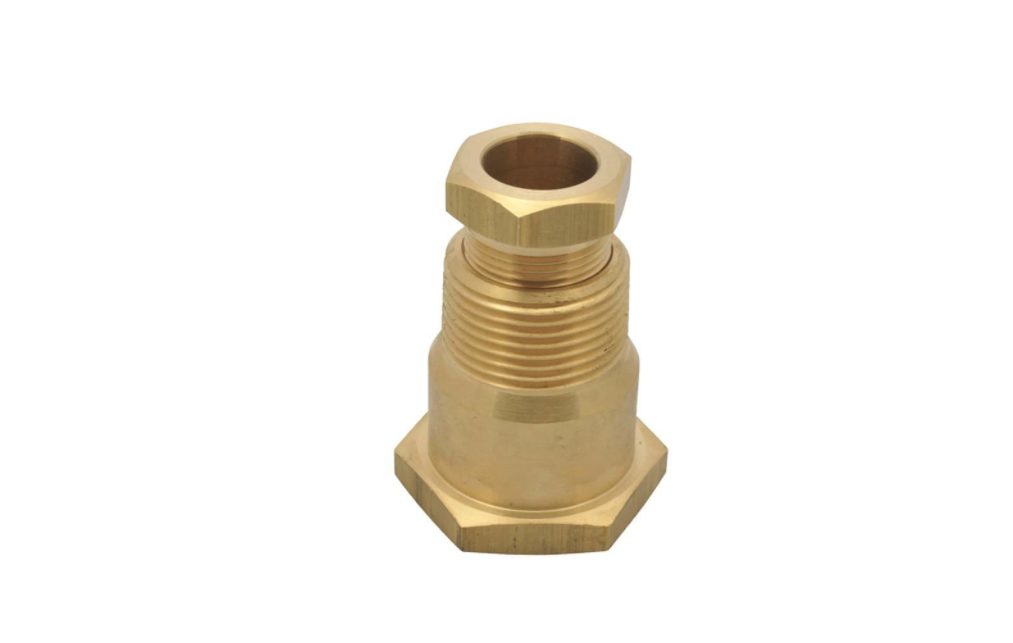

Junction Box Cord Seal – EGN

Function

The EGN is a compression cord seal for use with EBN flush-mounted junction box.

Specifications

  • Provides watertight connection of underwater cables connecting junction boxes with lights
  • Threaded connector, compression nut and friction washer
  • Made of brass with neoprene compression seal

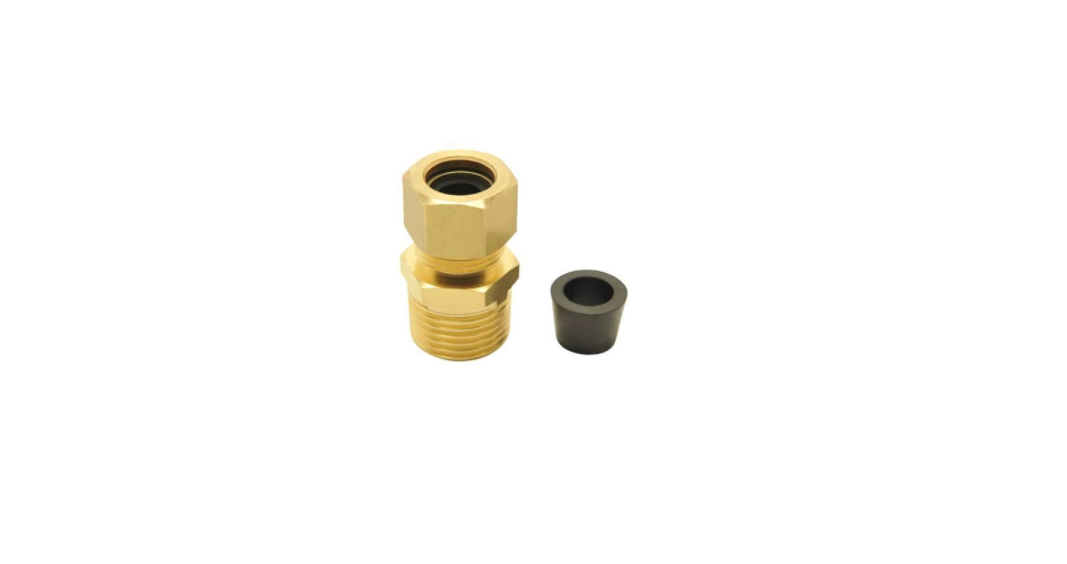

Junction Box Cord Seal – EGS

Function

For watertight connections of underwater cables connecting EBJ junction boxes with lights, water level sensors and pumps.

Specifications

  • Threaded connector, compression nut and friction washer
  • Made of brass or plastic with neoprene compression seals
  • LED160 Series
  • LED170 Series
  • LED180 Series

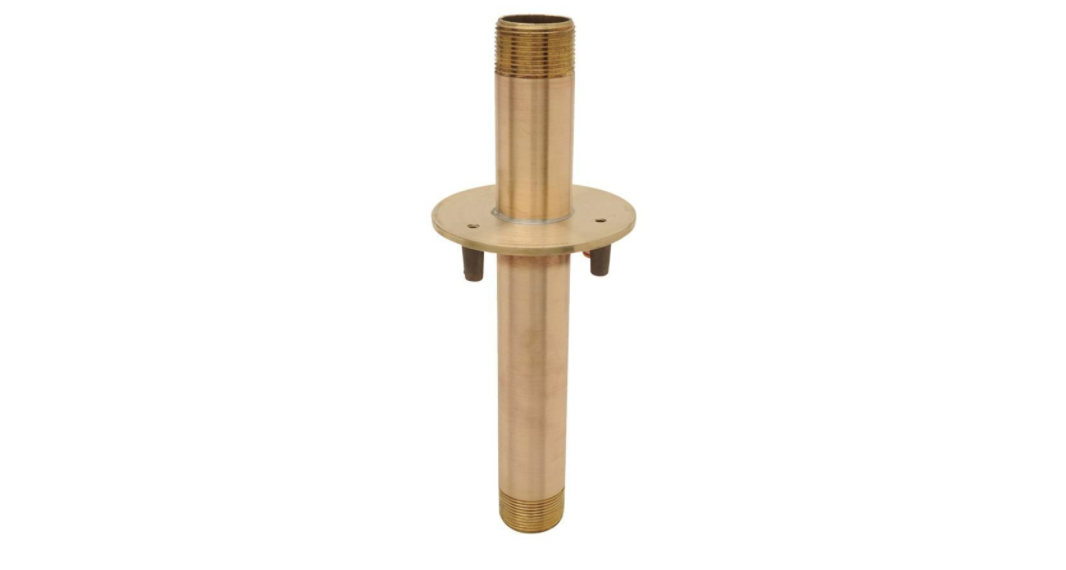

Stub Up

Function

Stub ups provide watertight and secure penetrations through concrete and membranes directly into fountain pools.

Specifications

  • Flanged bronze conduit stub ups adhere to electrical code, are leak-proof and strong
  • Works with EBJ or EBN bronze underwater junction boxes
  • Available in three versions for different applications
  • Made of red brass with cast bronze and available in custom lengths
