Column Pod

Similar to the NPA, the NPD produces a majestic, clear column with an exaggerated mist effect that becomes more concentrated with the height of the stream.

Function

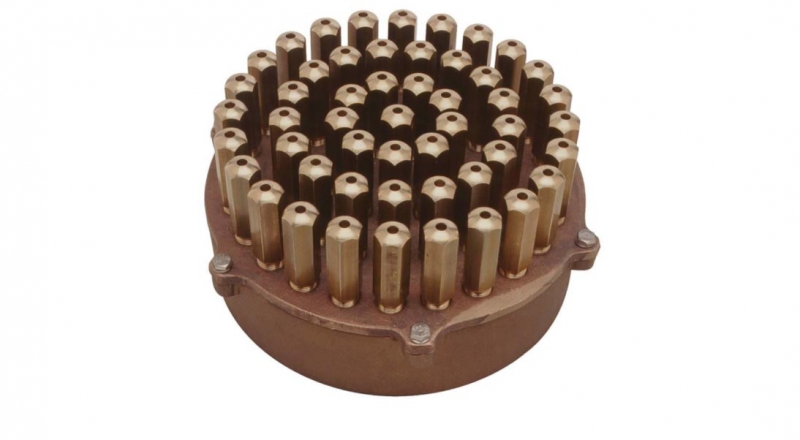

A large vertical column consisting of concrentric rows of clear stream nozzles. Excellent for viewing at great distances, especially when illuminated.
Not water level dependent

Options
ASU Series – 15º swivel connection for directional alignment of nozzle

Note

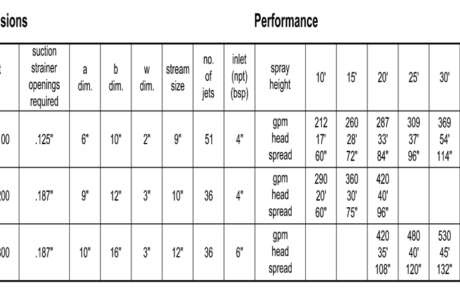

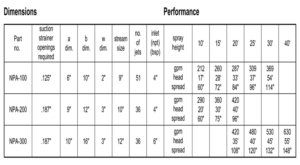

1. Requires fine screening at pump (see performance chart)

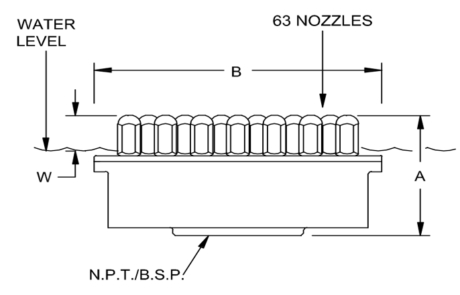

2. Dimension ‘W’ (nozzle projection above water) must be maintained.

If you have questions on this product please call 631-467-5115.

Specifications:

  • Less dense column of water
  • Ideal for medium to large pools
  • Produces a good visual effect from a distance and holds light well
  • Made of machined brass and cast bronze
  • Optional alignment swivel available (ASU)
  • Not water level dependent
Column Pod Cutsheet
