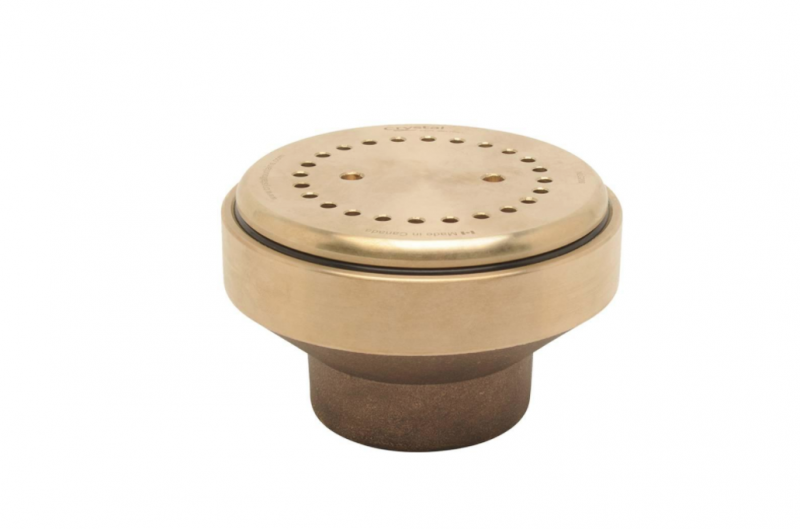

Ground Jet

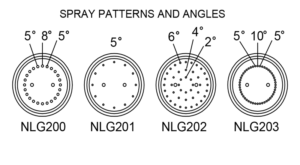

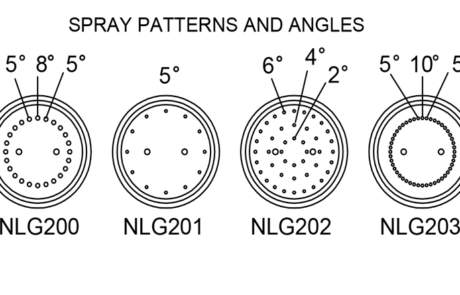

A popular, multi-purpose spray jet that can be used in small and medium-sized fountains and play decks. Big brother to the NLF Crown Jet, this 5″ diameter nozzle creates a larger volume of gentle spray with a greater spread. Available with 4 interchangeable tops for different spray patterns.

Function
A multi-purpose spray jet that can be used in a small and medium-sized fountain. The jet can also be cast into spray aprons in public playgrounds to ensure vandal-resistant installation. Gentle spray coverage.
Not water level dependent.

Specification
Construction shall be machined cast bronze. Faceplate shall be removable for easy cleaning with a security key. Ground lug shall be copper with stainless steel fastener.

Water connection: 2″ n.p.t female

Options

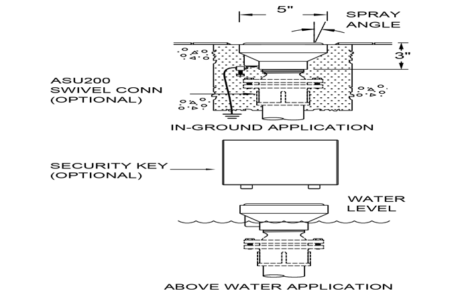

ASU200 – 15º swivel connection for directional alignment of the nozzle
NLG200 W – Winter Cover
NLG200 K – Locking key (cover removable)
B.S.P. threading

Notes

  1. Requires fine screening at the pump for optimum effect (maximum 0.030″).
  2. Contact Crystal Fountains Inc. for customized hole patterns.

If you don’t find what you’re looking for please call us at 631-467-5115.

Specifications:

  • Made of machined cast bronze
  • Removable faceplate for easy cleaning
  • Optional alignment swivel available (ASU)
  • Not water level dependent
Ground Jet Cutsheet
