Spray Ring

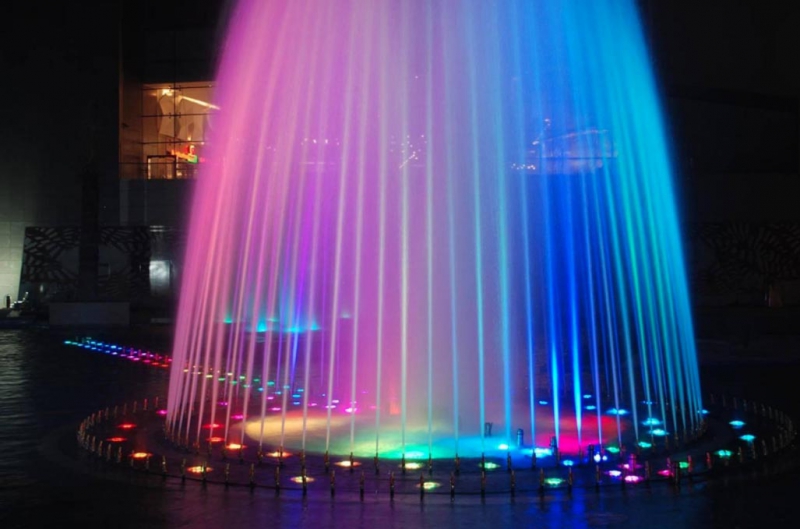

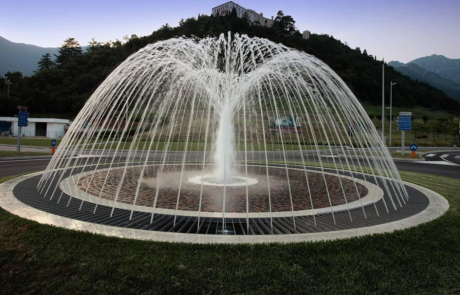

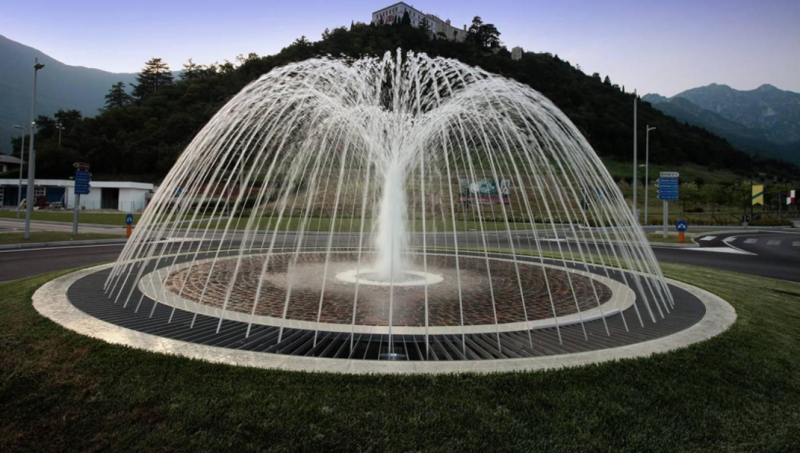

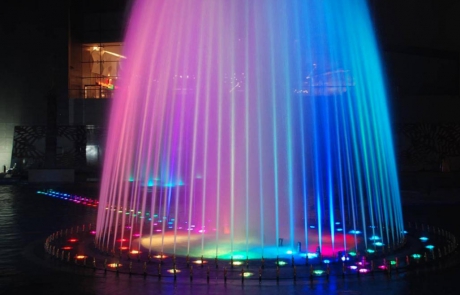

A classic, circular pattern of individual sprays with an outstanding visual effect. The streams of water appear lacy by day and sparkle at night while illuminated.

Function
A circular pattern of individual sprays with an outstanding visual effect. The spray appears lacy by day and sparkles when illuminated by night. Adjustable nozzles permit infall, straight or outfall pattern.
Not water level dependent.

Specifications

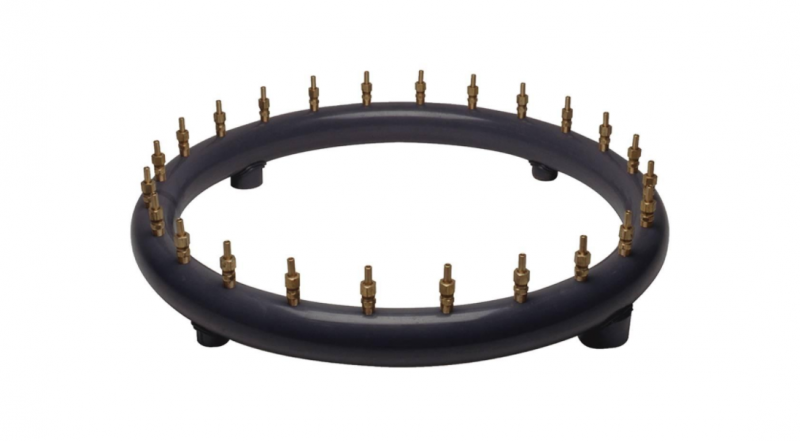

Construction shall be extruded PVC with individually adjustable brass nozzles with inlet fittings, plugs and four copper legs as required.

Options

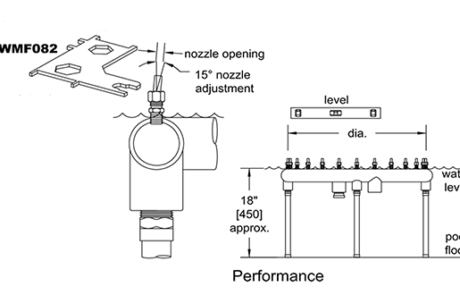

Red brass ring – Contact Crystal Fountains Inc. WMF082 – Nozzle adjustor key

Notes

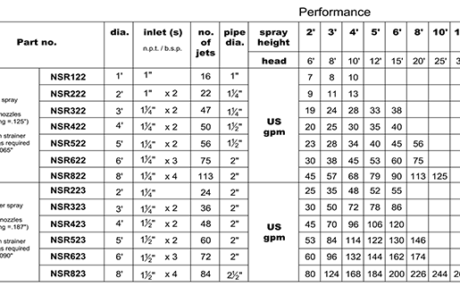

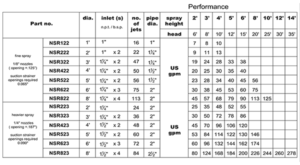

  1. Requires fine screening at pump (see performance chart)
  2. Contact Crystal Fountains Inc. for customized rings and bars (all shapes and sizes)

If you have questions on this product please call 631-467-5115.

Specifications:

  • Adjustable nozzles permit infall, straight, or outfall spray patterns
  • Can be customized in size and shape to suit your needs
  • Made of extruded PVC with individually adjustable brass nozzles
  • Not water level dependent
Spray Ring Cutsheet
